UniFi - Enterprise Access Hub

€1.068,00 EUR
€1.068,00 EUR
Tax included. Shipping calculated at checkout.
Wat klanten zeggen
Klantbeoordeling 4,5 van 5
Gebaseerd op 45 reviews
Bekijk alle reviews →

For business clients, we offer invoice payments with various payment options. Contact us by email to discuss the options!

  • American Express
  • Apple Pay
  • Bancontact
  • Google Pay
  • iDEAL Wero
  • Klarna
  • Maestro
  • Mastercard
  • PayPal
  • Visa
How quickly do we ship your order?
Can I pay by invoice?
Returns Policy
Need advice?
Seen it cheaper elsewhere?

All specifications

Dimensions 379 x 355 x 105 mm
Weight Device: 9.1 kg
Holder 624 g
Housing material SGCC housing with PC cover
Mounting material SGCC wall mounting plate
Network Interface (10) 10/100/1000 Base-T
Power method Universal input, 100-240 V AC, ~4.4 A max, 50/60 Hz
Power supply AC/DC, internal
Max. power consumption 240W
PoE interface (8) PoE (pins 1, 2+; 3, 6-)
PoE mode voltage range 44-57V DC
Total available PoE 60W
Max. PoE wattage per port 15.4W
Button (1) Factory Reset
LEDs System: white/blue
Output relay solid white
Ethernet Flashing white
Digital input (8) Exit request inputs
Dry Output Relay (8) Latching Terminals (12V or Dry)
Powered Output Relay Latching: 12V DC, 1A/Dry
Aux Dry Only
Operating environment Indoor use only
Operating temperature 0 to 40 C
Operating humidity 5 to 95% non-condensing
Certifications CE, FCC, IC
UA-Lock-Electric (400mA) 100 m 66 m 42 m 25 m
UA-Lock-Magnetic-270kg (800mA) 46 m 30 m 20 m 12 m
UA-Lock-Magnetic-540kg (500mA) 80 m 51 m 32 m 20 m
Other ditches (1A) 36 m 24 m 15 m 9 m

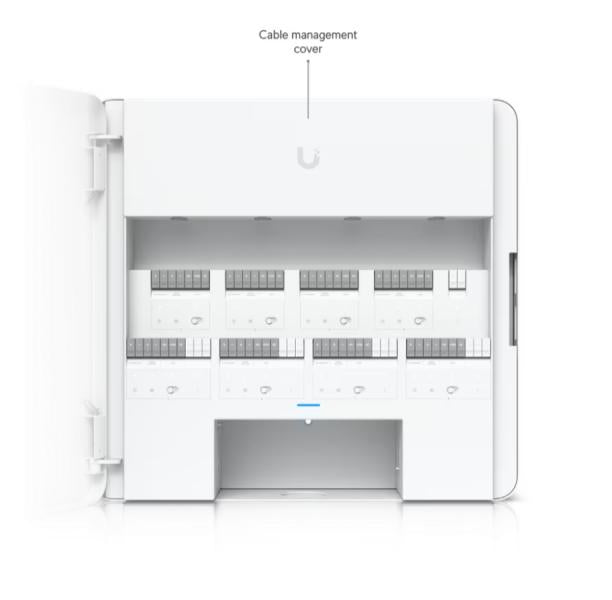

The UniFi Enterprise Access Hub is an advanced access controller designed for professional multi-door installations. Its rugged SGCC enclosure with a PC cover and wall-mounting plate makes it ideal for reliable, indoor applications in business environments.

Physical properties
Dimensions: 379 x 355 x 105 mm
Weight: Device 9.1 kg, holder 624 g
Housing material: SGCC with PC cover
Mounting: SGCC wall mounting plate

Hardware and connections
Network Interface: (10) 10/100/1000 Base-T ports
Power supply: Universal input 100–240V AC, 50/60Hz, internal AC/DC
Max. power consumption: 240W
PoE: (8) PoE ports (pins 1,2+; 3,6-), 44–57V DC
Total PoE power: 60W
Max. power per port: 15.4W
Button: (1) Factory Reset
LEDs: System white/blue, Ethernet flashing white, output relay white

  • Entrances and exits
    Digital inputs:
  • (8) Exit request entries
  • (8) Inputs for door position sensors
  • (1) Emergency entrance
  • Dry output relay:
  • (8) Locking clamps (12V or dry)
  • (4) AUX terminals for doorbell, siren or door opener
  • Powered output relay:
  • Lock: 12V DC, 1A or dry

Aux: Dry Only

  • Use and environment
    Use: Indoor only
    Operating temperature: 0°C to 40°C
    Humidity: 5–95% non-condensing
    Certifications: CE, FCC, IC
  • Recommended maximum cable length (per lock type)
    UA-Lock-Electric (400mA): 100 m (18 AWG)
    UA-Lock-Magnetic-270kg (800mA): 46m (18 AWG)
    UA-Lock-Magnetic-540kg (500mA): 80 m (18 AWG)
    Other locks (1A): 36 m (18 AWG)
  • The UniFi Enterprise Access Hub offers a powerful, centralized access control solution with comprehensive PoE support, versatile sensor connections, and reliable performance for professional network environments. Available from Umatech .
