UniFi - Access Point WiFi 6 Mesh

The UniFi Access Point WiFi 6 Mesh is a high-performance wireless access point designed for both indoor and outdoor use. Its compact size and weatherproof housing (IPX5) ensure excellent performance and durability, making it ideal for demanding environments.

Key Specifications

• Dimensions: Ø48.5 x 159.5 mm
• Weight: 400 g
• Housing: Plastic and aluminum
• Mounting material: Plastic
• Weather resistance: IPX5

Network and management
The UniFi Access Point WiFi 6 Mesh is easy to manage via Ethernet or Bluetooth and connects via a Gigabit RJ45 port . The LED indicator (RGB) provides visual status information, while the factory reset button simplifies management.

Power and power consumption

• Power method: 802.3af PoE
• Power: UniFi PoE switch or included 48V, 0.32A PoE adapter
• Voltage range: 44 – 57VDC
• Max. consumption: 11.4W

Wireless performance
With support for WiFi 6 (802.11a/b/g/n/ac/ax), this access point offers impressive speeds and coverage:

• 2.4 GHz: up to 573.5 Mbps, antenna gain 3 dBi
• 5 GHz: up to 4.8 Gbps, antenna gain 5 dBi
• MIMO: 2x2 (UL MU-MIMO) at 2.4 GHz, 4x4 (DL/UL MU-MIMO) at 5 GHz
• Max. transmit power: 22 dBm (2.4 GHz) / 26 dBm (5 GHz)
• Simultaneous clients: 300+

Security and management features
The UniFi Access Point WiFi 6 Mesh supports the latest security standards: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) . It also features VLAN 802.1Q , guest traffic isolation , Advanced QoS with per-user rate limiting , and Zero Wait DFS (with upcoming firmware).

Installation and environment

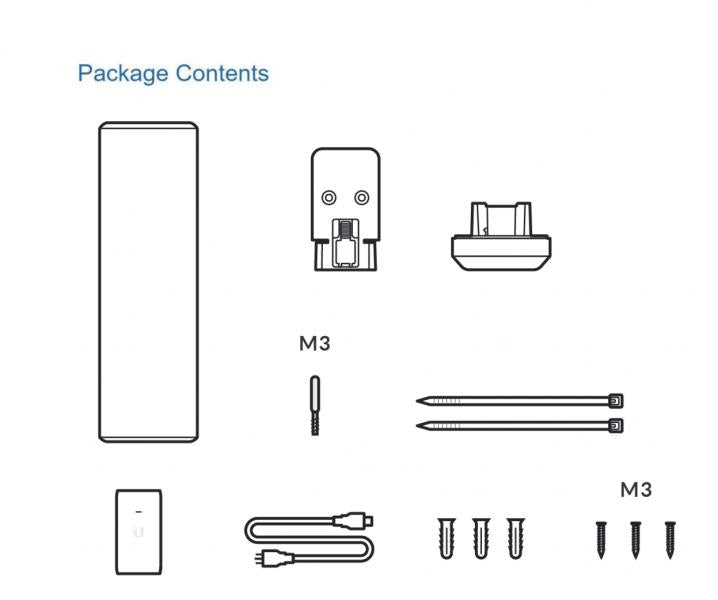

The access point can be mounted in various ways: wall, table, or pole (included). Ceiling mounting is optional.

• Working temperature: -30°C to 60°C
• Humidity: 5 – 95% (non-condensing)
• Certifications: CE, FCC, IC

Conclusion
The UniFi Access Point WiFi 6 Mesh combines excellent wireless performance with a robust design and flexible mounting options. Perfect for those looking for reliable coverage, high speeds, and easy management — now available from Umatech .
