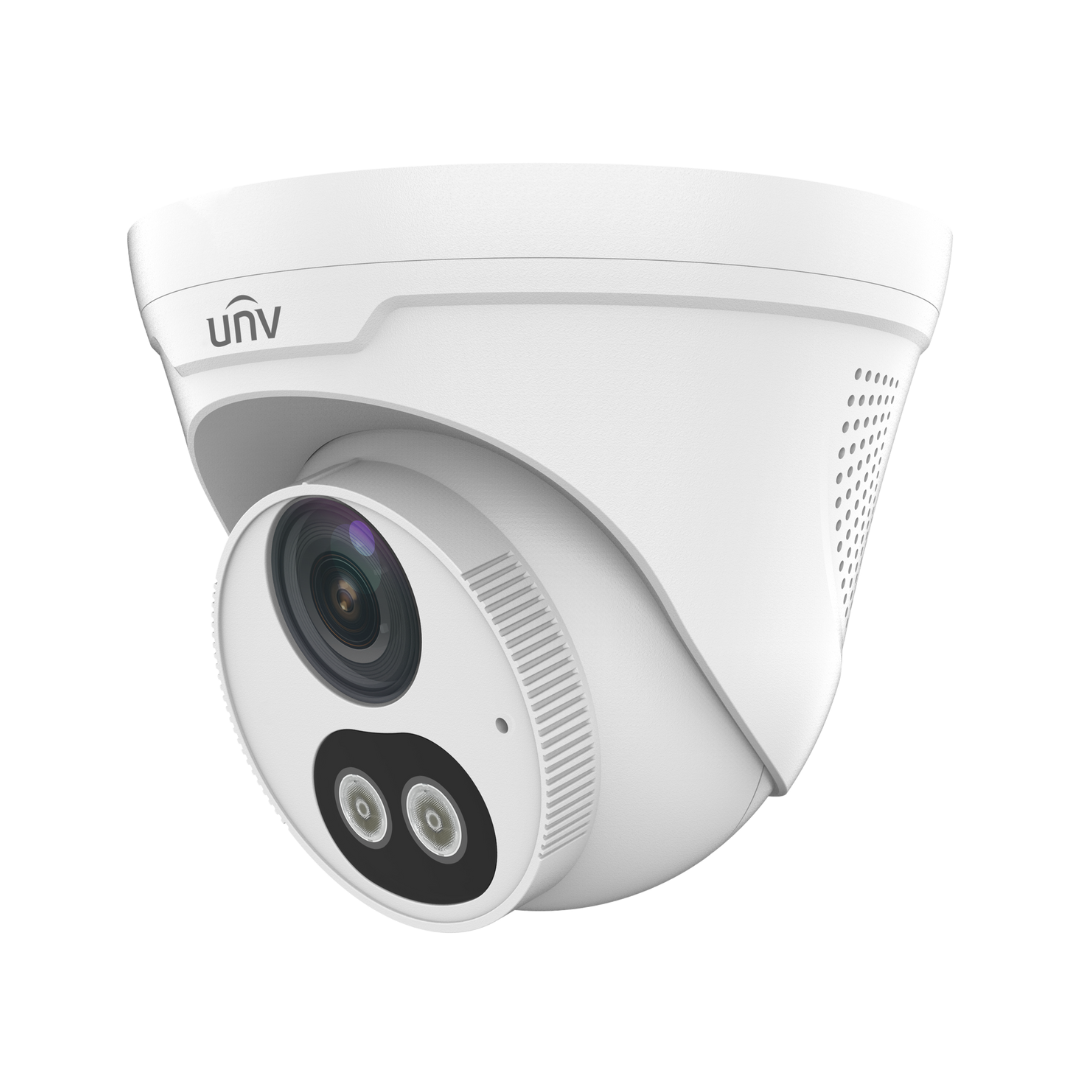

Uniview IPC3614LE-ADF28KC-WL – 4MP Turret Camera – 2.8 mm – White LED

The Uniview IPC3614LE-ADF28KC-WL is a very compact 4-megapixel vandal-resistant turret camera with 30 m IR night vision and white LED, a built-in microphone and speaker, 120 dB WDR, PoE and a fixed 2.8 mm lens. The camera is suitable for indoor and outdoor use. You can insert a microSD card of up to 128 GB for local recording (microSD card not included).

Features

The camera delivers images in 2688 × 1520 resolution. The fixed 2.8 mm lens provides a horizontal field of view of 112.9°. In dark conditions the camera switches on its built-in IR illumination, giving a sharp image even in complete darkness (0 lux).

The camera has both white LED and IR illumination, each with a maximum range of 30 m. With the white LED switched on, the camera can also produce colour images at night. 120 dB Wide Dynamic Range (WDR) lets the camera handle complex lighting conditions well.

Footage can be stored on a network video recorder (NVR) or on a microSD memory card of up to 128 GB. Suitable recorders and microSD cards are available in the options on this page.

A free mobile app is available for Apple iOS and Android. The camera has a built-in web server, so you can view and manage it with a web browser. Cameras and footage can also be managed with an NVR, and free Video Management Software (VMS) for your computer can be downloaded from the Uniview website. The Documentation tab contains a link to the manufacturer's product page and datasheet.

The IPC3614LE-ADF28KC-WL is suitable for outdoor use with an IP67 rating and is vandal-resistant to IK10. For easy installation, the camera can be powered over the network cable via Power over Ethernet (802.3af PoE), supplied by a PoE NVR, a PoE switch or a PoE injector. Alternatively, it can be powered with an optional 12 V power adapter. The camera is adjustable on 3 axes and has an alarm input and output. Suitable mounting brackets are listed among the related products on this page.

Key features

• 4-megapixel white outdoor turret camera with white LED
• Fixed 2.8 mm lens with 112.9° horizontal field of view
• Built-in microphone and speaker
• Free app and software
• Motion detection, privacy mask, Region of Interest (ROI)
• Recording to a microSD memory card up to 128 GB (not included)
• Day/night camera with automatic mechanical IR-cut filter
• IR night vision and white LED illumination up to 30 m
• Adjustable on 3 axes
• 120 dB Wide Dynamic Range (WDR)
• Ultra H.265 compression for efficient use of network and storage
• ONVIF compatible
• Suitable for outdoor use, IP67
• Vandal-resistant, IK10
• Power via 12 V DC adapter or PoE (802.3af)
